- Easy to operate
- Micro controller based technology
- Surface mounting
- No need of maintenance
- Highly repeat accurancy
- Din Rail mountable

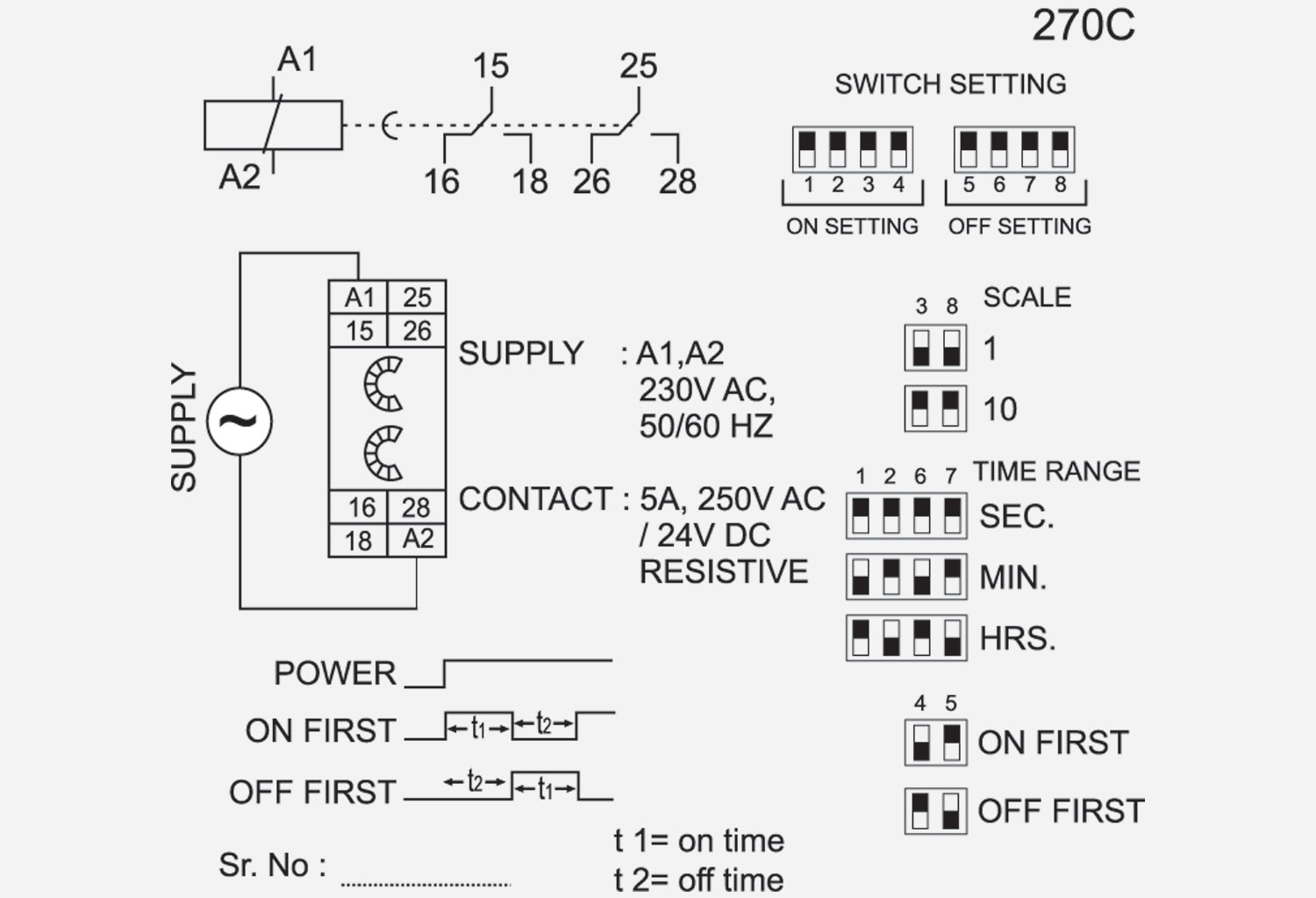

| Supply voltage | 230 / 415 VAC, 50Hz ± 20% |
| Output Relay Contact | 2 C/o |
| Output contact Rating | 6 Amp , 230VAC(Resistive) |
| ON time delay | 1-10 sec/min/hrs |
| OFF time delay | 1-10 sec/min/hrs |
| Resetting | Power on Reset |
| Enclosure | PVC box |
| Weight | 0.126 gms |
| Dimension (mm) | |
| -Dimension (HXWXD) | (75X23X107) mm |
| -Din Rail mounting | Yes |
- Compressor, generator, Air conditioner
